MAC400-D2-CAGM JVL IP55 Rated Integrated Motor

Sku#: MAC400-D2-CAGM

Contact us for availability.

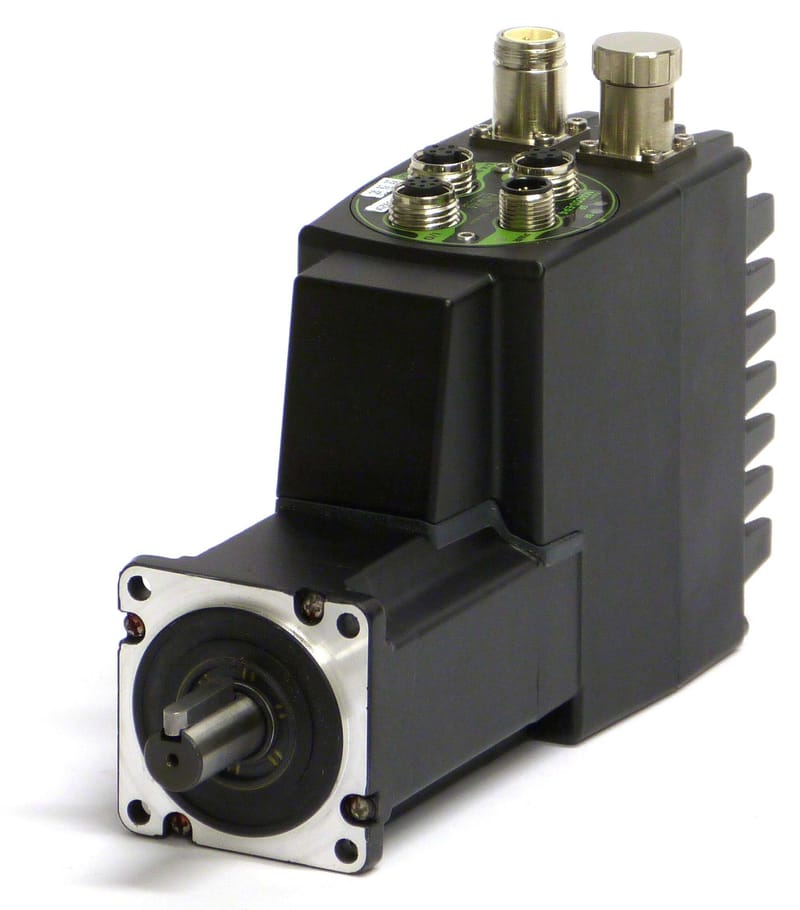

The JVL MAC400-D2-CAGM Integrated Servo Motor is a 400W (0.54hp) motor. The MAC400-D2 has a peak torque of 3.8Nm and weighs 2.3kg (5.11lb). The speed range for the MAC400-D2 is 0-3000RPM with full torque and a maximum of 3500RPM. This motor comes with the following options: C: Incremental encoder 8192; A: Standard square flange G: Black thick painting (IP42/IP55); M: MAC400 14mm key 5x20mm

MAC400 - The complete solution for medium power ratings. With built-in mains power supply. Choose between model with or without brake. Also in IP66 version. Choose Expansion module from the extensive selection for any application. Motor size is: MAC400-D2 400W MAC400-D5 (with built-in brake) 400W New features: Absolute multiturn encoder without battery Real-time industrial Ethernet: Profinet, Ethernet/IP, MODBUS TCP, EtherCAT, Powerlink and SercosIII 2 RS422 channels for encoder in/output and SSI encoder etc. 6IO for capture of position, interrupt, counters, enable, timer and PLC functions

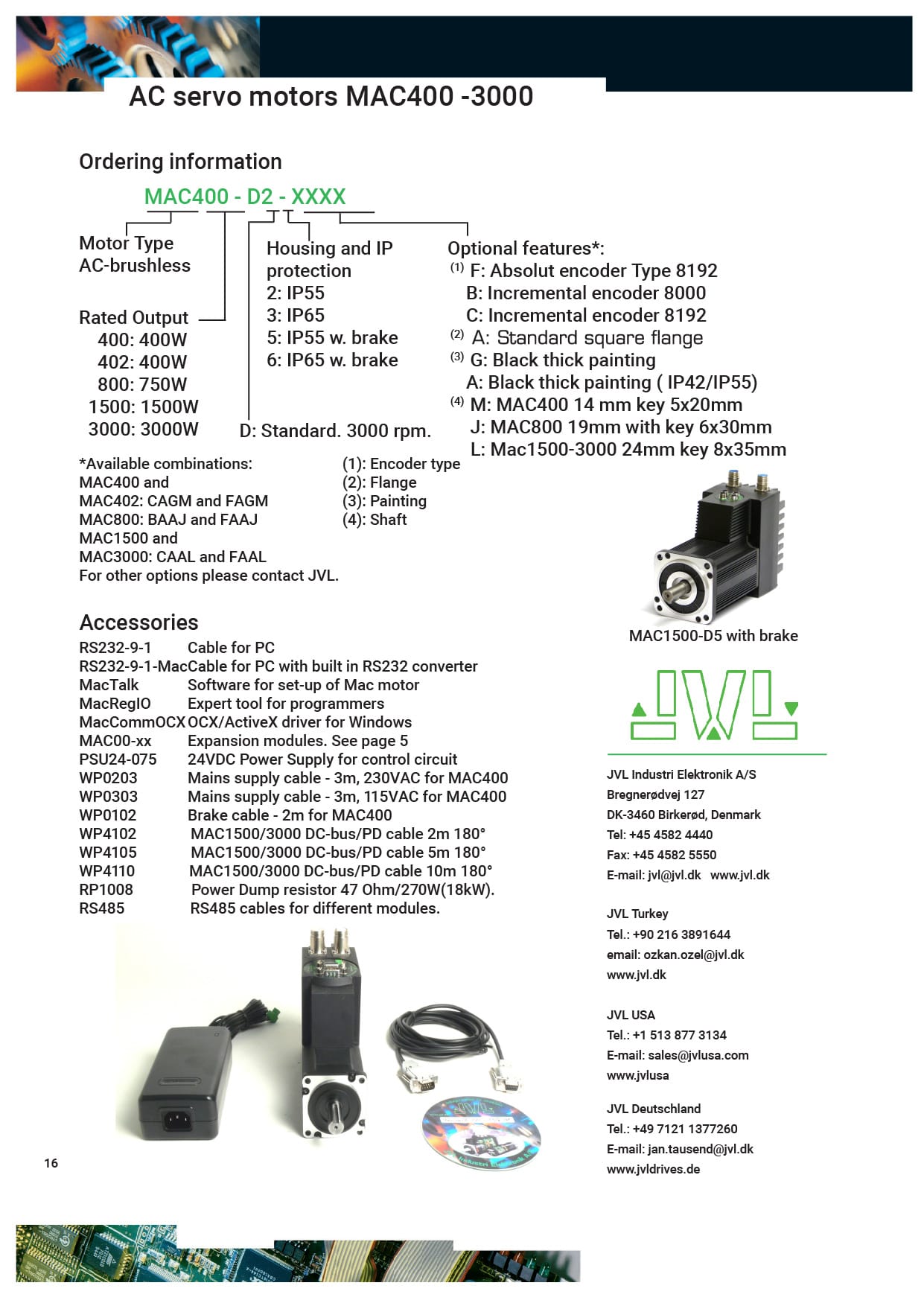

JVL Motor Ordering Options
