Details

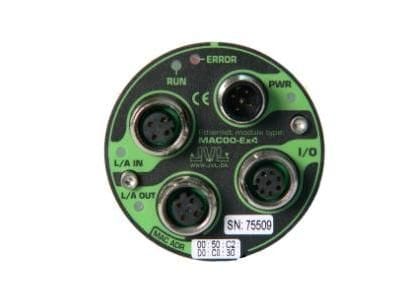

The JVL MAC00-EP4 PROFINET expansion module has 8 pin connectors for I/O and can be controlled and set up via PROFINET.
Specifications:
- 8 pin connector for I/O. Total 4x M12.
- Control and setup via PROFINET.
- PROFINET inut and output. Switch built-in.
- For built-in PLC with (MAC400-3000) or HWI for MAC050-141.
- 1 digital input for enable, limit, etc.
- 1 analogue input for zero search and adjustement, etc.
- 1 digital opto-isolated output up to 15mA for In Position, Error, etc.
- IP67 Protection.
- RS232 interface.
PROFINET is the innovative open standard for Industrial Ethernet, development by Siemens and the Profibus User Organization (PNO). With PROFINET, solutions can be implemented for factory and process automation, for safety applications, and for the entire range of drive technology right up to clock-synchronized motion control. PROFINET is standardized in IEC 61158 and IEC 61784. Profinet products are certified by the PNO user organization, guaranteeing worldwide compatibility.PROFINET is based on Ethernet and uses TCP/IP and IT standards and complements them with specific protocols and mechanisms to archive a good Real Time performance. PROFINET enables the integration of existing Fieldbus systems like PROFIBUS, DeviceNet, and Interbus, without changes to existing devices. That means that the investments of plant operators, machine and system builders, and device manufacturers are protected.
-
Additional Information
Part Number MAC00-EP4 Brand JVL Industri Elektonik A/S Pack Size 1.0000 UOM EA Lead time (Historical if not in stock) 0 Lead Days Product Type Motor IP Rating IP67 -
