LROEMXT 3/4 X 2 Enidine Adjustable Hydraulic Shock Absorber, 1 3/4-12 Thread, 2.00 in Stroke

The Enidine LROEMXT 3/4 X 2 is an adjustable hydraulic shock absorber with a 1 3/4-12 mounting thread and 2.00 in stroke.

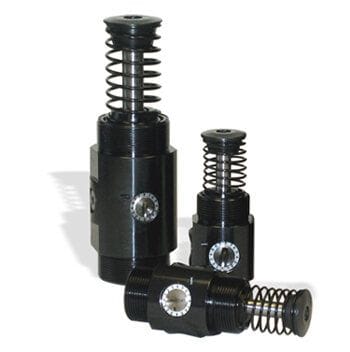

The Enidine OEMXT Series is an adjustable mid-bore hydraulic shock absorber with a low profile adjustment knob, offered in imperial or metric thread configurations with stroke lengths of 1 to 6 inches. Low Range (LROEMXT) models control velocities as low as 3 in./sec. and propelling forces as high as 4,000 lbs. OEMXT shock absorbers are fully field repairable.

Specifications:

Manufacturer:	Enidine
Model:	LROEMXT 3/4 X 2
Enidine part number:	FP22187
Series:	LROEMXT
Type:	Adjustable hydraulic shock absorber
Mounting thread:	1 3/4-12
Stroke:	2 in
Optimal velocity range:	3-55 in/s
Max. energy per cycle:	7,500 in-lbs/cycle
Max. energy per hour:	1,475,000 in-lbs/hour
Max. reaction force:	4,500 lbs
Nominal coil spring force, extended:	11 lbs
Nominal coil spring force, compressed:	18 lbs
Max. propelling force:	1,500 lbs
Weight:	3.7 lbs

Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.27).
