LROEMXT 1-1/8 X 2 Enidine Adjustable Hydraulic Shock Absorber, 2 1/2-12 Thread, 2.00 in Stroke

The Enidine LROEMXT 1-1/8 X 2 is an adjustable hydraulic shock absorber with a 2 1/2-12 mounting thread and 2.00 in stroke.

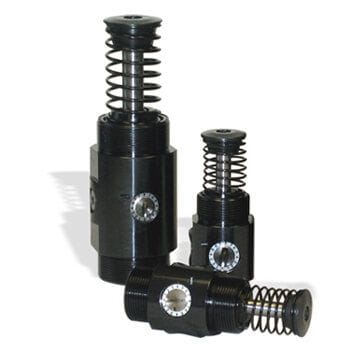

The Enidine OEMXT Series is an adjustable mid-bore hydraulic shock absorber with a low profile adjustment knob, offered in imperial or metric thread configurations with stroke lengths of 1 to 6 inches. Low Range (LROEMXT) models control velocities as low as 3 in./sec. and propelling forces as high as 4,000 lbs. OEMXT shock absorbers are fully field repairable.

Specifications:

Manufacturer:	Enidine
Model:	LROEMXT 1-1/8 X 2
Enidine part number:	FP22189
Series:	LROEMXT
Type:	Adjustable hydraulic shock absorber
Mounting thread:	2 1/2-12
Stroke:	2 in
Optimal velocity range:	3-30 in/s
Max. energy per cycle:	20,000 in-lbs/cycle
Max. energy per hour:	2,400,000 in-lbs/hour
Max. reaction force:	11,500 lbs
Nominal coil spring force, extended:	17 lbs
Nominal coil spring force, compressed:	35 lbs
Max. propelling force:	4,000 lbs
Weight:	7.9 lbs

Source: Enidine 2026 price list; ratings from the Enidine shock absorber catalogue (p.29).
