LBX20120 Baco 22mm Green/Red Flush Momentary Control Station with 1 NO, 1 NC, and I/O Symbols
Sku#: LBX20120
Contact us for availability.
Details
More Information
Reviews

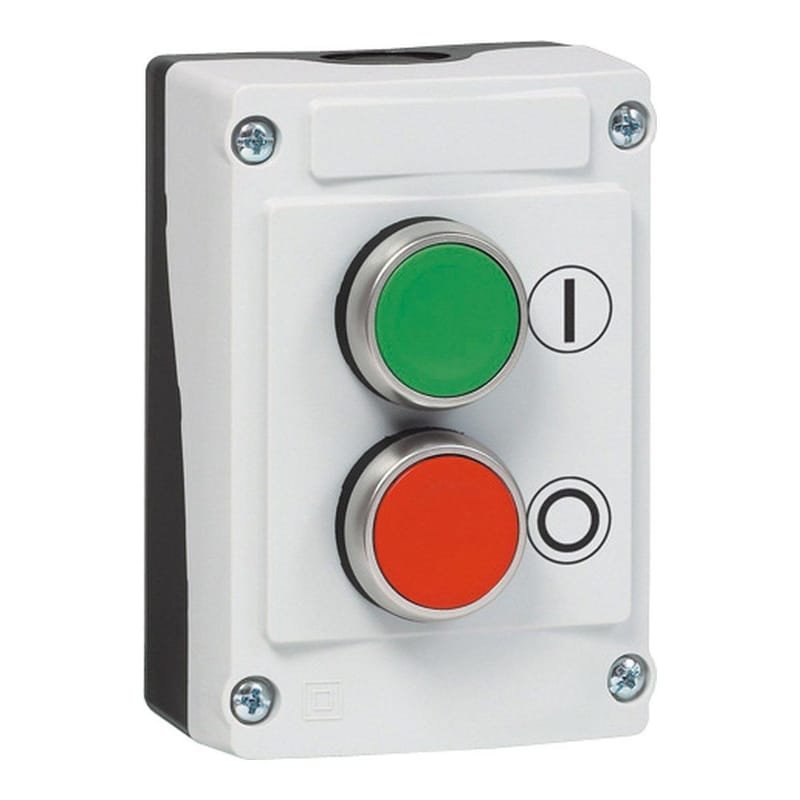

The Baco LBX20120 is a 22mm Green/Red Flush Momentary Control Station with 1 NO, 1 NC, and I/O Symbols.
Complete device: supplied ready to install.
Specifications:
| Manufacturer: | Baco Controls |
| Part Number: | LBX20120 |
| Device Type: | Control Station |
| Size: | 22 mm |
| Configuration: | Complete Device |
| Illumination: | Non-Illuminated |
| Function: | Momentary/Momentary |
| Style: | Twin Flush |
| Color: | Green/Red |
| Bezel Color: | Chrome |
| Contacts: | 1 Normally Open (NO), 1 Normally Closed (NC) |
General Specifications:
| Degree of protection: | IP66 (equipped control stations) |
| Impact protection: | IK07 (empty control station) |
| Electrical insulation: | Class II (IEC 60947-5-1) |
| Operating temperature: | -25 °C to +70 °C |
Source: Baco Controls catalog 803, technical specifications.
