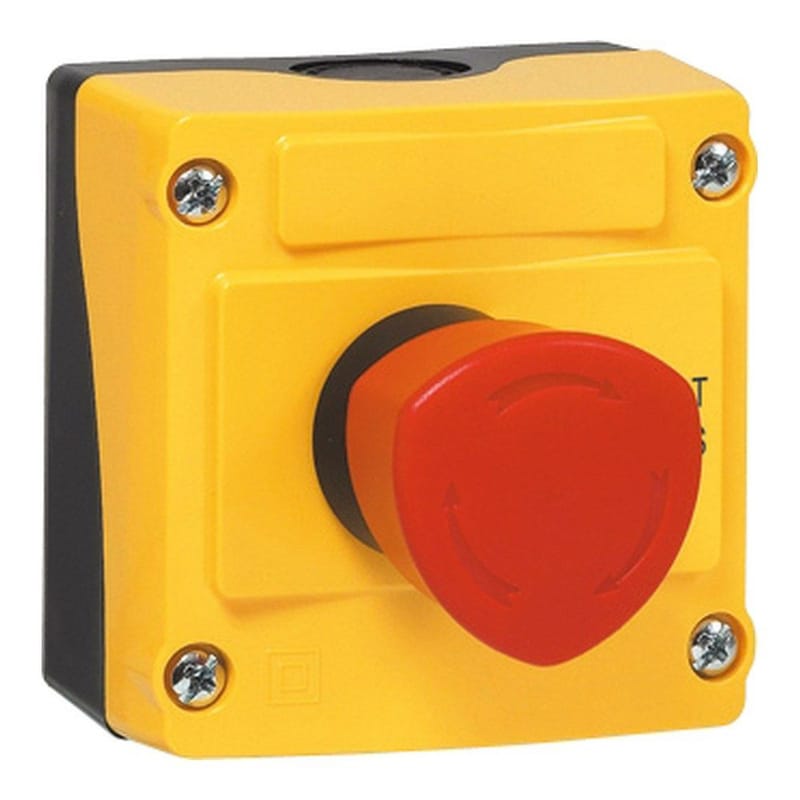

LBX17301 Baco 22mm Red 40mm Push-Turn Mushroom Maintained Control Station with 1 NC and Emergency Stop

The Baco LBX17301 is a 22mm Red 40mm Push-Turn Mushroom Maintained Control Station with 1 NC and Emergency Stop.

Complete device: supplied ready to install.

Specifications:

Manufacturer:	Baco Controls
Part Number:	LBX17301
Device Type:	Control Station
Size:	22 mm
Configuration:	Complete Device
Illumination:	Non-Illuminated
Function:	Push-Turn
Style:	40 mm Mushroom
Color:	Red
Bezel Color:	Black
Contacts:	1 Normally Closed (NC)

General Specifications:

Degree of protection:	IP66 (equipped control stations)
Impact protection:	IK07 (empty control station)
Electrical insulation:	Class II (IEC 60947-5-1)
Operating temperature:	-25 °C to +70 °C

Source: Baco Controls catalog 803, technical specifications.
