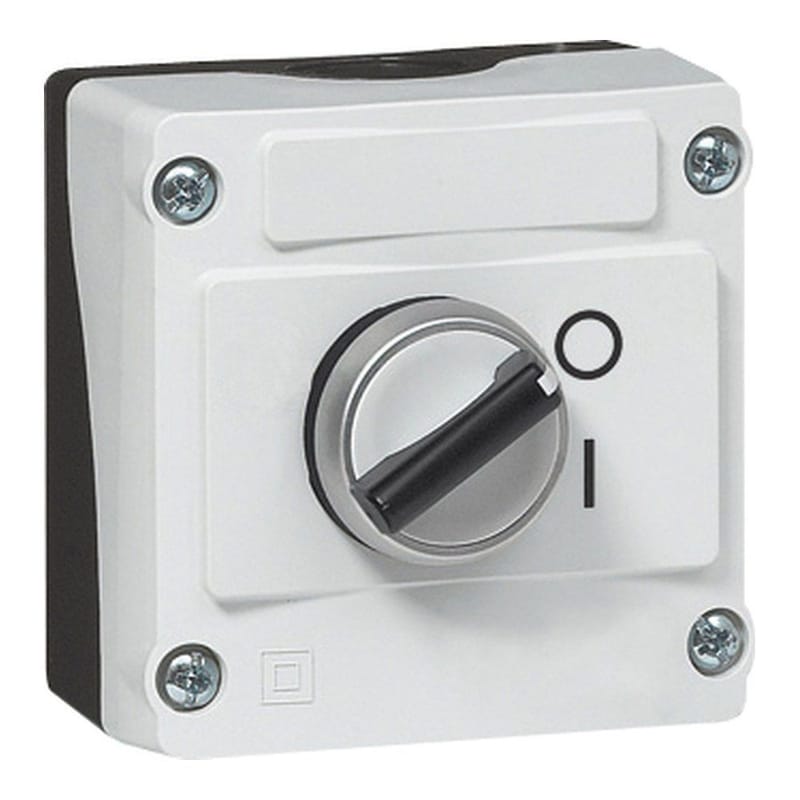

LBX12510 Baco 22mm 2-Position Black Key Switch Maintained Control Station with 1 NO and I/O Symbols

The Baco LBX12510 is a 22mm 2-Position Black Key Switch Maintained Control Station with 1 NO and I/O Symbols.

Complete device: supplied ready to install.

Specifications:

Manufacturer:	Baco Controls
Part Number:	LBX12510
Device Type:	Control Station
Size:	22 mm
Configuration:	Complete Device
Illumination:	Non-Illuminated
Function:	Maintained
Number of Positions:	2
Style:	Standard Handle
Color:	Black
Bezel Color:	Chrome
Contacts:	1 Normally Open (NO)

General Specifications:

Degree of protection:	IP66 (equipped control stations)
Impact protection:	IK07 (empty control station)
Electrical insulation:	Class II (IEC 60947-5-1)
Operating temperature:	-25 °C to +70 °C

Source: Baco Controls catalog 803, technical specifications.
