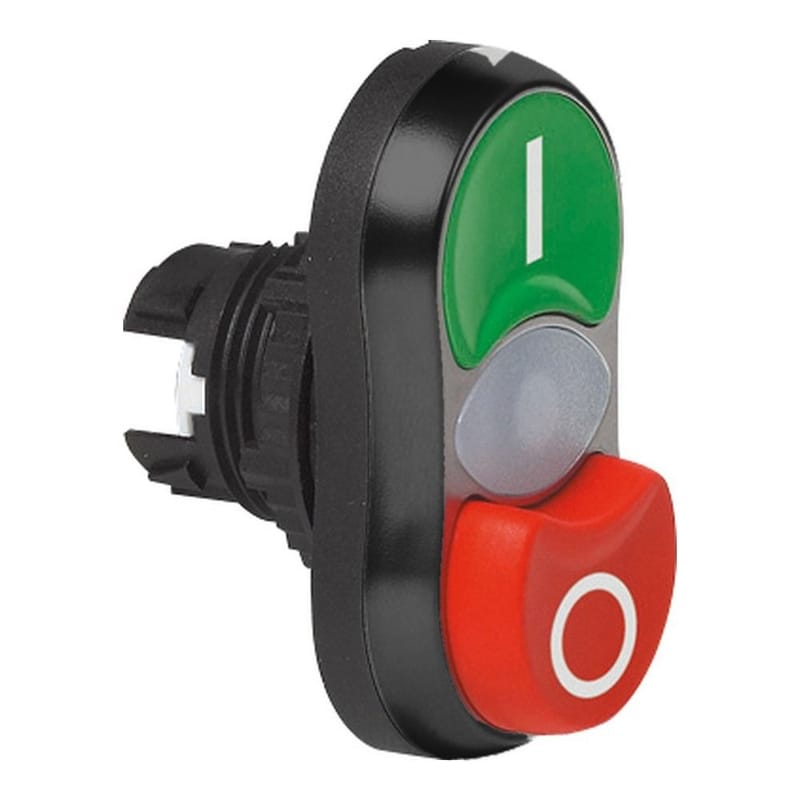

L62QK21 Baco 22mm Twin Touch Flush/Projected Green/Red Illuminated Black Bezel Pushbutton with I/O Symbols

The Baco L62QK21 is a 22mm Twin Touch Flush/Projected Green/Red Illuminated Black Bezel Pushbutton with I/O Symbols.

Operator head only. To build a complete device, add a mounting clip and contact blocks, plus an LED module to light it — see 22mm clips and 22mm contact blocks and LED modules.

• Two or three buttons in a single panel hole
• Modular head, clip and contact block design

Specifications:

Manufacturer:	Baco Controls
Part Number:	L62QK21
Device Type:	Twin / Triple Touch Pushbutton
Size:	22 mm
Configuration:	Component
Illumination:	Illuminated
Function:	Twin Touch
Style:	Twin Flush/Projected
Color:	Green/Red
Bezel Color:	Black
Top button:	Green, "I" symbol
Bottom (projecting) button:	Red, "O" symbol
Center lens:	Illuminated

General Specifications:

Degree of protection:	IP66
NEMA type:	1, 2, 3, 3R, 3S, 4, 4X, 12 and 13
Operating temperature:	-25 °C to +70 °C
Mechanical endurance:	5,000,000 cycles (spring return)
Impact protection:	IK05
Approvals:	UL 508 / CSA 22.2 (US and Canada), Bureau Veritas

Source: Baco Controls catalog 803, technical specifications.
