L62BA22 Baco 22mm Triple Touch Green/Red/Green Black Bezel Pushbutton with Up/Down Arrows + Stop
Sku#: L62BA22
Contact us for availability.
Details
More Information
Reviews

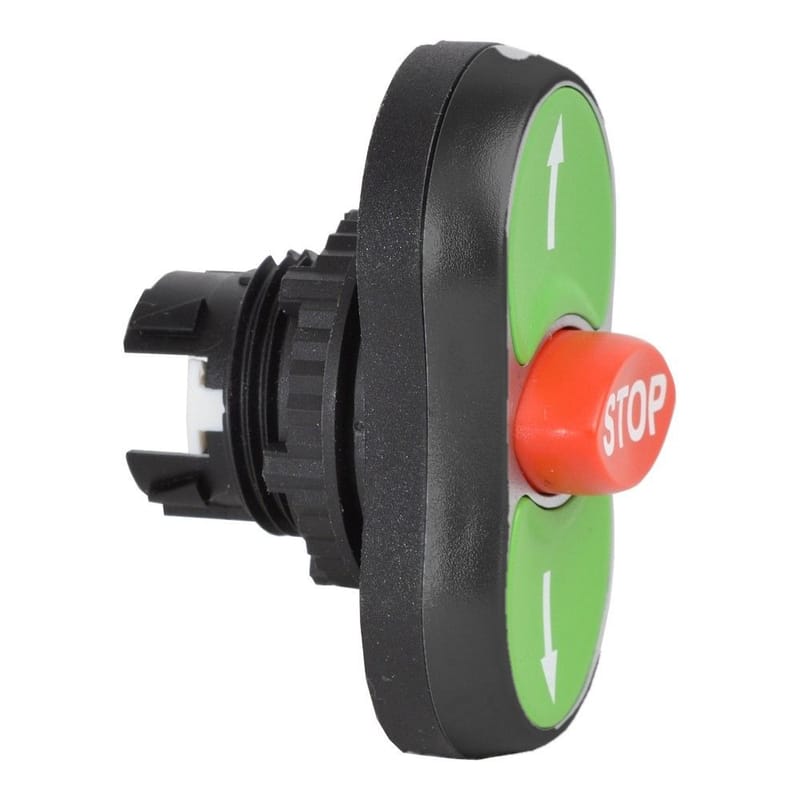

The Baco L62BA22 is a 22mm Triple Touch Green/Red/Green Black Bezel Pushbutton with Up/Down Arrows + Stop.
Operator head only. To build a complete device, add a mounting clip and contact blocks — see 22mm clips and 22mm contact blocks and LED modules.
- Two or three buttons in a single panel hole
- Modular head, clip and contact block design
Specifications:
| Manufacturer: | Baco Controls |
| Part Number: | L62BA22 |
| Device Type: | Twin / Triple Touch Pushbutton |
| Size: | 22 mm |
| Configuration: | Component |
| Illumination: | Non-Illuminated |
| Function: | Triple Touch |
| Style: | Triple |
| Color: | Green/Red/Green |
| Bezel Color: | Black |
| Top button: | Green, up arrow |
| Center (projecting) button: | Red, text STOP |
| Bottom button: | Green, down arrow |
General Specifications:
| Degree of protection: | IP66 |
| NEMA type: | 1, 2, 3, 3R, 3S, 4, 4X, 12 and 13 |
| Operating temperature: | -25 °C to +70 °C |
| Mechanical endurance: | 5,000,000 cycles (spring return) |
| Impact protection: | IK05 |
| Approvals: | UL 508 / CSA 22.2 (US and Canada), Bureau Veritas |
Source: Baco Controls catalog 803, technical specifications.
