L22VA03L Baco 22mm 24 V Buzzer
Sku#: L22VA03L
Contact us for availability.
Details
More Information
Reviews

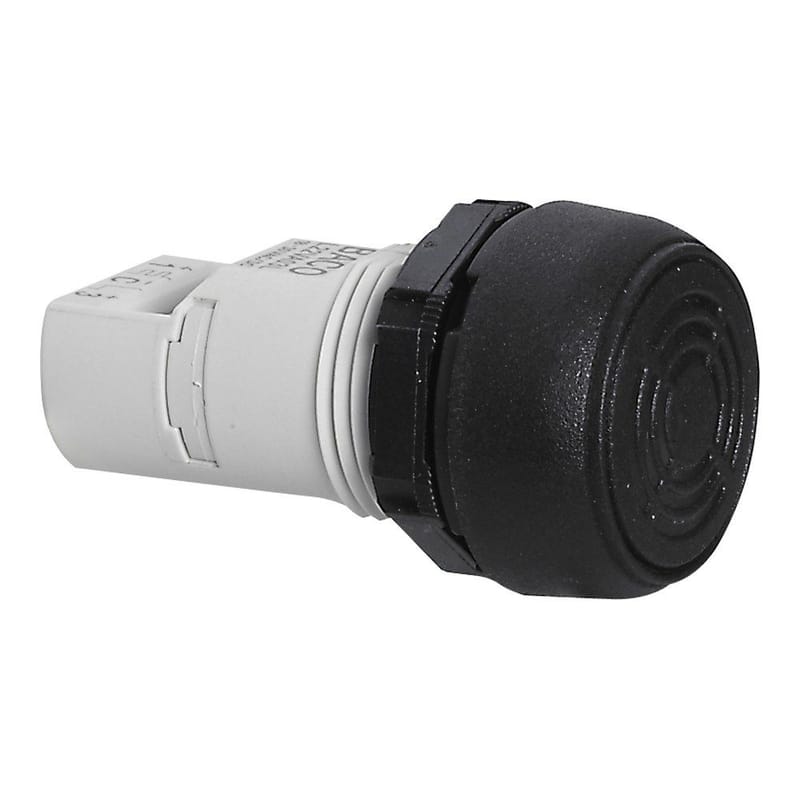

The Baco L22VA03L is a 22mm 24 V Buzzer.
Operator head only. To build a complete device, add a mounting clip and contact blocks — see 22mm clips and 22mm contact blocks and LED modules.
Specifications:
| Manufacturer: | Baco Controls |
| Part Number: | L22VA03L |
| Device Type: | Specialty Operator |
| Size: | 22 mm |
| Configuration: | Component |
| Function: | Buzzer |
| Color: | Black |
| Bezel Color: | Black |
| LED Voltage: | 24 V AC/DC |
General Specifications:
| Degree of protection: | IP66 |
| NEMA type: | 1, 2, 3, 3R, 3S, 4, 4X, 12 and 13 |
| Operating temperature: | -25 °C to +70 °C |
| Impact protection: | IK05 |
| Approvals: | UL 508 / CSA 22.2 (US and Canada), Bureau Veritas |
Source: Baco Controls catalog 803, technical specifications.
