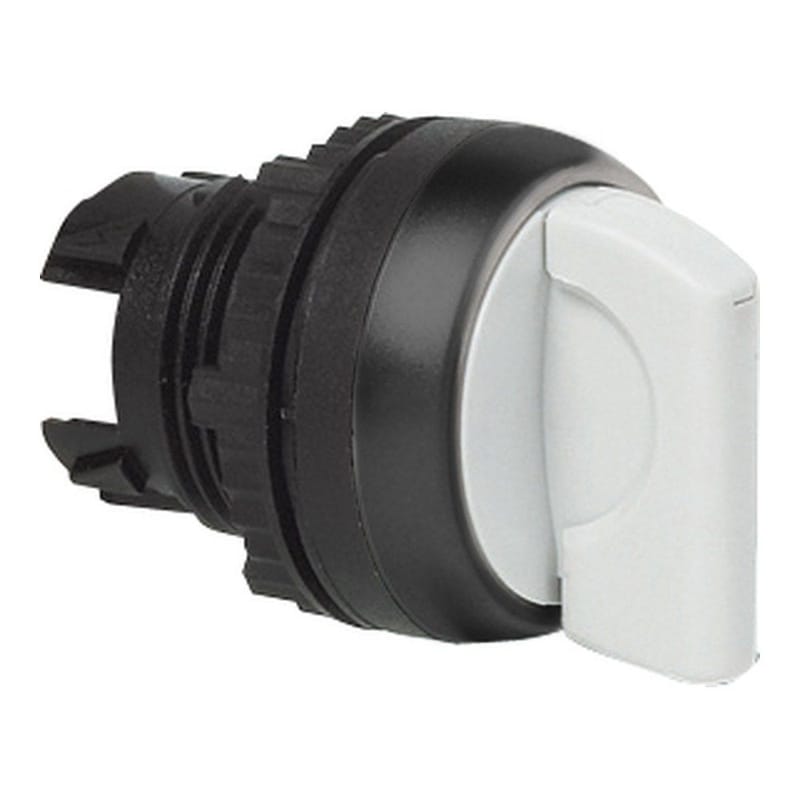

L22KF08 Baco 22mm Grey 2 Position Maintained Black Bezel Selector Switch

The Baco L22KF08 is a 22mm Grey 2 Position Maintained Black Bezel Selector Switch.

Operator head only. To build a complete device, add a mounting clip and contact blocks — see 22mm clips and 22mm contact blocks and LED modules.

• Modular head, clip and contact block design
• Contact blocks on the clip set which positions switch which circuits

Specifications:

Manufacturer:	Baco Controls
Part Number:	L22KF08
Device Type:	Selector Switch
Size:	22 mm
Configuration:	Component
Illumination:	Non-Illuminated
Function:	Maintained
Number of Positions:	2
Style:	Standard Handle
Color:	Grey
Bezel Color:	Black

General Specifications:

Degree of protection:	IP66, IP69 and IP69K
NEMA type:	1, 2, 3, 3R, 3S, 4, 4X, 12 and 13
Operating temperature:	-25 °C to +70 °C
Mechanical endurance:	300,000 cycles
Impact protection:	IK05
Approvals:	UL 508 / CSA 22.2 (US and Canada), Bureau Veritas

Source: Baco Controls catalog 803, technical specifications.
