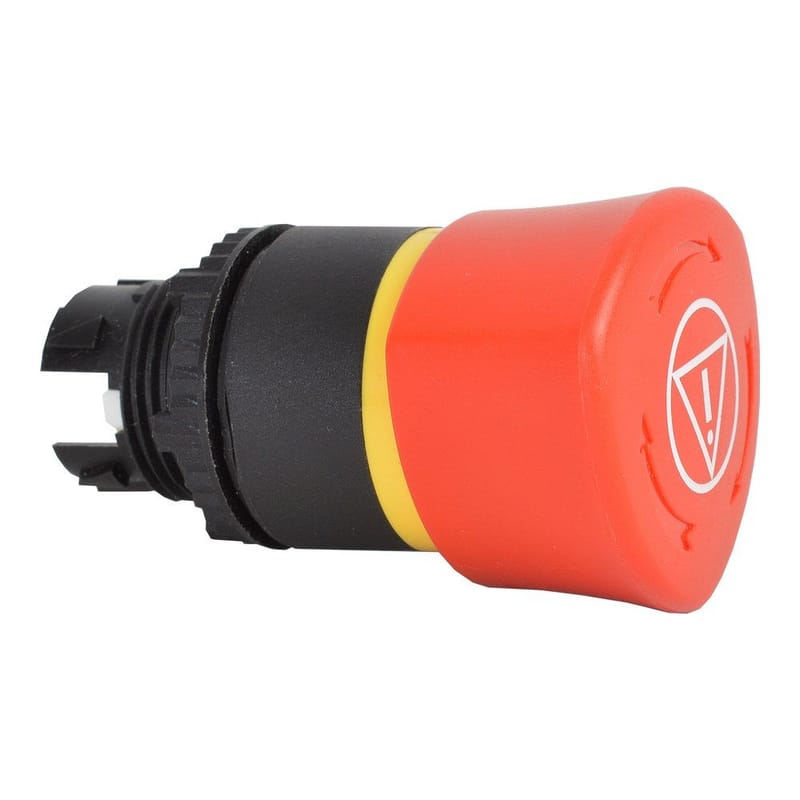

L22ER01K Baco 22mm Red 40mm Mushroom Push-Turn Black Bezel Emergency-Stop Switch with International Organization for Standardization (ISO) Symbol

The Baco L22ER01K is a 22mm Red 40mm Mushroom Push-Turn Black Bezel Emergency-Stop Switch with International Organization for Standardization (ISO) Symbol.

Operator head only. To build a complete device, add a mounting clip and contact blocks — see 22mm clips and 22mm contact blocks and LED modules.

• Red mushroom head
• Use with normally closed (NC) contact blocks
• Pair with a yellow emergency stop legend plate

Specifications:

Manufacturer:	Baco Controls
Part Number:	L22ER01K
Device Type:	Emergency Stop
Diameter:	22 mm
Configuration:	Component
Illumination:	Non-Illuminated
Function:	Push-Turn
Style:	40 mm Mushroom
Color:	Red
Bezel Color:	Black

General Specifications:

Degree of protection:	IP66, IP69 and IP69K
NEMA type:	1, 2, 3, 3R, 3S, 4, 4X, 12 and 13
Operating temperature:	-25 °C to +70 °C
Mechanical endurance:	100,000 cycles (mushroom head maintained function, ISO 13850)
Impact protection:	IK05
Approvals:	UL 508 / CSA 22.2 (US and Canada), Bureau Veritas
Emergency stop function:	ISO 13850 head; use with a positive-opening NC contact block (IEC 60947-5-5)

Source: Baco Controls catalog 803, technical specifications.
