L22ED01-3E02 Baco 22mm Red 40mm Mushroom Black Bezel Push-Turn Button with 2 NC and 3 Position Clip
Sku#: L22ED01-3E02
Contact us for availability.
Details
More Information
Reviews
The Baco L22ED01-3E02 is a 22mm Red 40mm Mushroom Black Bezel Push-Turn Button with 2 NC and 3 Position Clip.

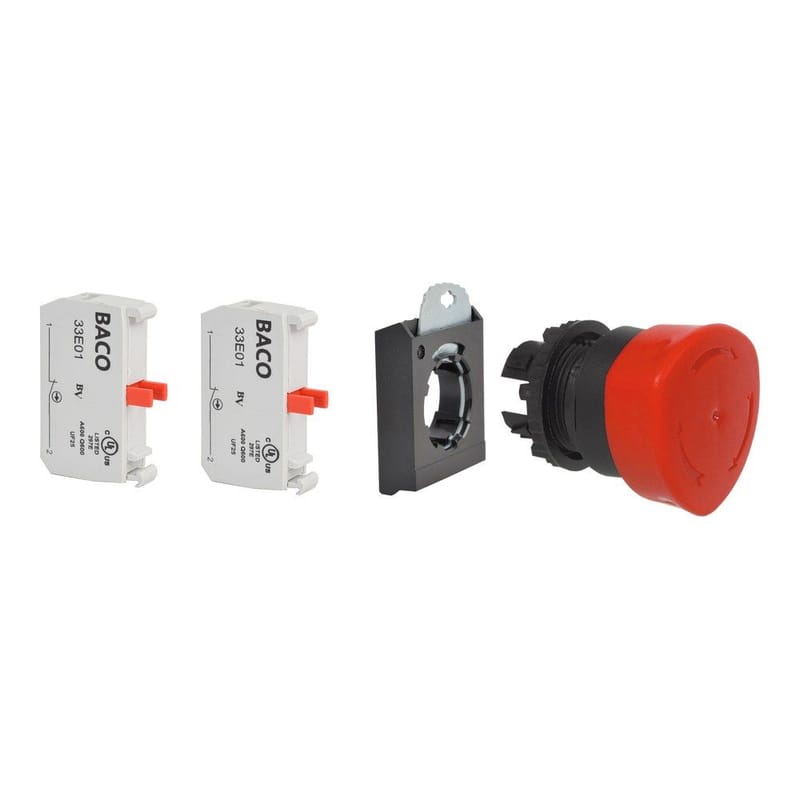

Complete device: supplied ready to install, made up of L22ED01, 333E, 33E01, 33E01.
- Modular head, clip and contact block design
- Installs from the front of the panel with one hand
Specifications:
| Manufacturer: | Baco Controls |
| Part Number: | L22ED01-3E02 |
| Device Type: | Mushroom Pushbutton |
| Size: | 22 mm |
| Configuration: | Complete Device |
| Illumination: | Non-Illuminated |
| Function: | Push-Turn |
| Style: | 40 mm Mushroom |
| Color: | Red |
| Bezel Color: | Black |
| Contacts: | 2 Normally Closed (NC) |
General Specifications:
| Degree of protection: | IP66, IP69 and IP69K |
| NEMA type: | 1, 2, 3, 3R, 3S, 4, 4X, 12 and 13 |
| Operating temperature: | -25 °C to +70 °C |
| Mechanical endurance: | 150,000 cycles (mushroom head maintained function) |
| Impact protection: | IK05 |
| Approvals: | UL 508 / CSA 22.2 (US and Canada), Bureau Veritas |
Source: Baco Controls catalog 803, technical specifications.
