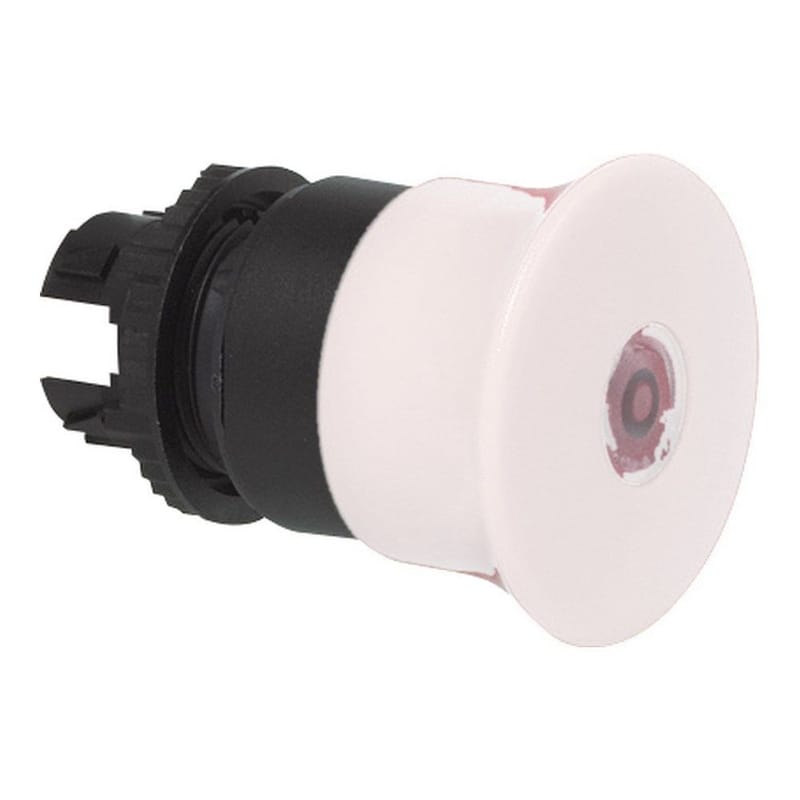

L22DM50 Baco 22mm White 40mm Mushroom Push-Pull Illuminated Black Bezel Button

The Baco L22DM50 is a 22mm White 40mm Mushroom Push-Pull Illuminated Black Bezel Button.

Operator head only. To build a complete device, add a mounting clip and contact blocks, plus an LED module to light it — see 22mm clips and 22mm contact blocks and LED modules.

• Modular head, clip and contact block design
• Installs from the front of the panel with one hand

Specifications:

Manufacturer:	Baco Controls
Part Number:	L22DM50
Device Type:	Mushroom Pushbutton
Size:	22 mm
Configuration:	Component
Illumination:	Illuminated
Function:	Push-Pull
Style:	40 mm Mushroom
Color:	White
Bezel Color:	Black

General Specifications:

Degree of protection:	IP66, IP69 and IP69K
NEMA type:	1, 2, 3, 3R, 3S, 4, 4X, 12 and 13
Operating temperature:	-25 °C to +70 °C
Mechanical endurance:	150,000 cycles (mushroom head maintained function)
Impact protection:	IK05
Approvals:	UL 508 / CSA 22.2 (US and Canada), Bureau Veritas

Source: Baco Controls catalog 803, technical specifications.
