L22AM02A Baco 22mm Green Flush Momentary Black Bezel Pushbutton with Clear Flat Shroud

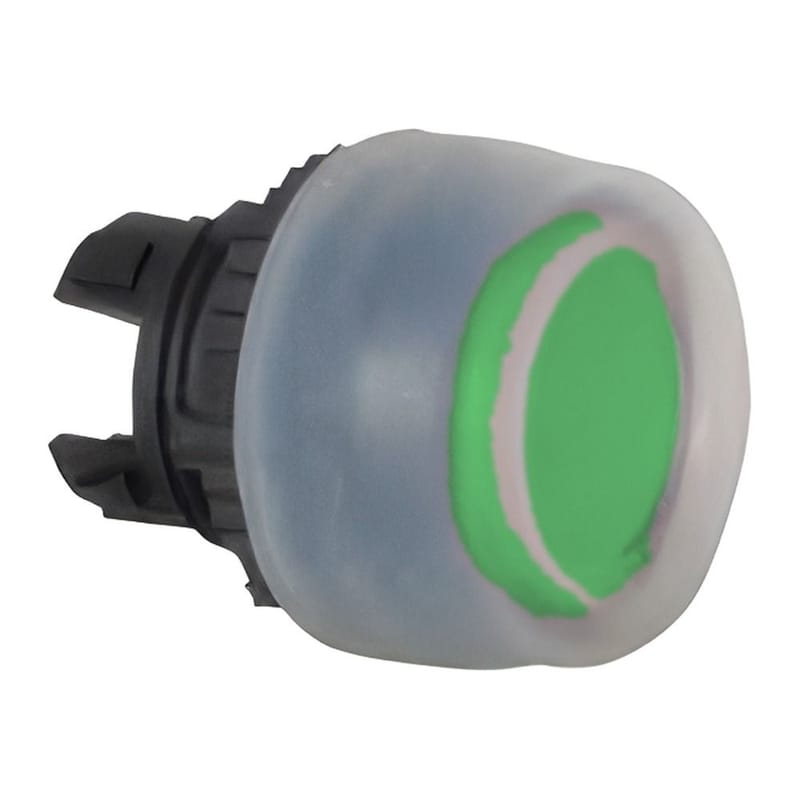

The Baco L22AM02A is a 22mm Green Flush Momentary Black Bezel Pushbutton with Clear Flat Shroud.

Operator head only. To build a complete device, add a mounting clip and contact blocks — see 22mm clips and 22mm contact blocks and LED modules.

• Modular head, clip and contact block design
• Installs from the front of the panel with one hand

Specifications:

Manufacturer:	Baco Controls
Part Number:	L22AM02A
Device Type:	Mushroom Pushbutton
Size:	22 mm
Configuration:	Component
Illumination:	Non-Illuminated
Function:	Momentary
Style:	Flush with Shroud
Color:	Green
Bezel Color:	Black

General Specifications:

Degree of protection:	IP67 (shrouded heads)
NEMA type:	1, 2, 3, 3R, 3S, 4, 4X, 12 and 13
Operating temperature:	-25 °C to +70 °C
Mechanical endurance:	5,000,000 cycles (spring return)
Impact protection:	IK05
Approvals:	UL 508 / CSA 22.2 (US and Canada), Bureau Veritas

Source: Baco Controls catalog 803, technical specifications.
