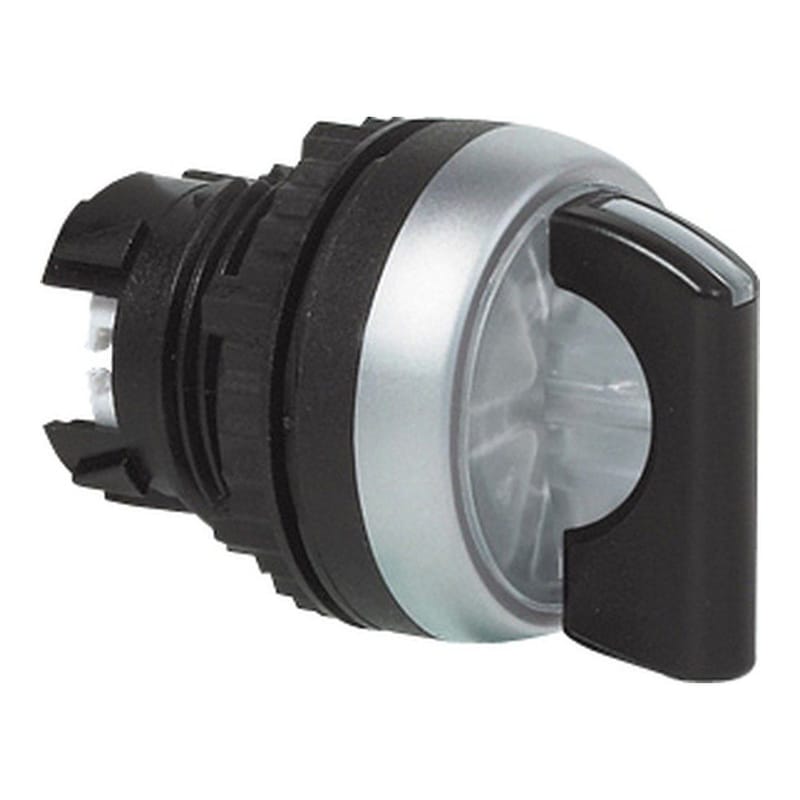

L21MJ30 Baco 22mm Black 3 Position Maintained Illuminated Chrome Bezel Selector Switch

The Baco L21MJ30 is a 22mm Black 3 Position Maintained Illuminated Chrome Bezel Selector Switch.

Operator head only. To build a complete device, add a mounting clip and contact blocks, plus an LED module to light it — see 22mm clips and 22mm contact blocks and LED modules.

• Modular head, clip and contact block design
• Contact blocks on the clip set which positions switch which circuits

Specifications:

Manufacturer:	Baco Controls
Part Number:	L21MJ30
Device Type:	Selector Switch
Size:	22 mm
Configuration:	Component
Illumination:	Illuminated
Function:	Maintained
Number of Positions:	3
Style:	Standard Handle
Color:	Black
Bezel Color:	Chrome

General Specifications:

Degree of protection:	IP66, IP69 and IP69K
NEMA type:	1, 2, 3, 3R, 3S, 4, 4X, 12 and 13
Operating temperature:	-25 °C to +70 °C
Mechanical endurance:	300,000 cycles
Impact protection:	IK05
Approvals:	UL 508 / CSA 22.2 (US and Canada), Bureau Veritas

Source: Baco Controls catalog 803, technical specifications.
