L21AL50 Baco 22mm White 32mm Mushroom Momentary Illuminated Chrome Bezel Pushbutton
Sku#: L21AL50
Contact us for availability.
Details
More Information
Reviews

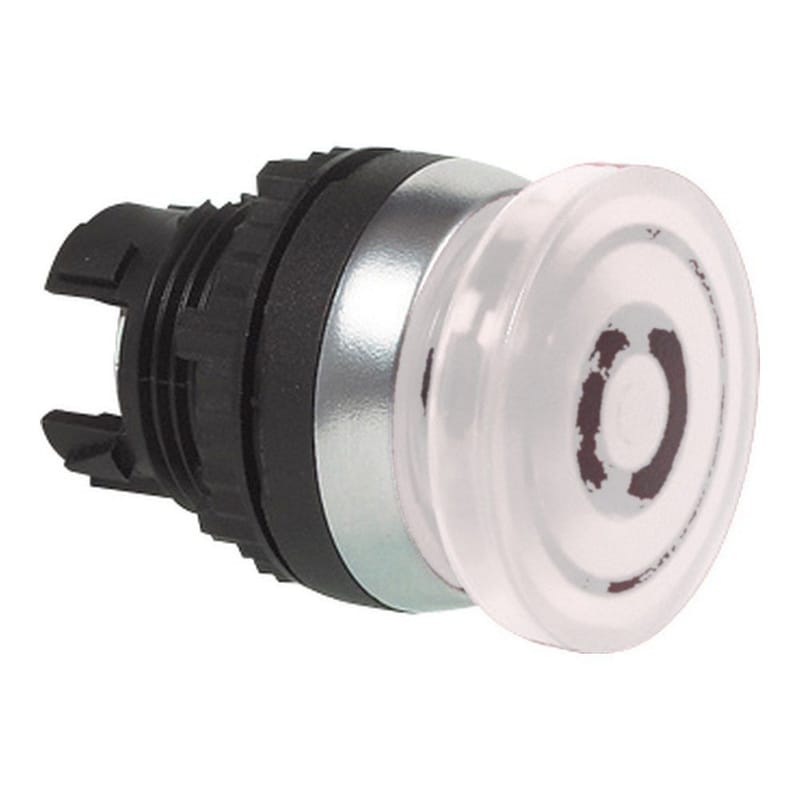

The Baco L21AL50 is a 22mm White 32mm Mushroom Momentary Illuminated Chrome Bezel Pushbutton.
Operator head only. To build a complete device, add a mounting clip and contact blocks, plus an LED module to light it — see 22mm clips and 22mm contact blocks and LED modules.
- Modular head, clip and contact block design
- Installs from the front of the panel with one hand
Specifications:
| Manufacturer: | Baco Controls |
| Part Number: | L21AL50 |
| Device Type: | Mushroom Pushbutton |
| Size: | 22 mm |
| Configuration: | Component |
| Illumination: | Illuminated |
| Function: | Momentary |
| Style: | 32 mm Mushroom |
| Color: | White |
| Bezel Color: | Chrome |
General Specifications:
| Degree of protection: | IP66, IP69 and IP69K |
| NEMA type: | 1, 2, 3, 3R, 3S, 4, 4X, 12 and 13 |
| Operating temperature: | -25 °C to +70 °C |
| Mechanical endurance: | 5,000,000 cycles (spring return) |
| Impact protection: | IK05 |
| Approvals: | UL 508 / CSA 22.2 (US and Canada), Bureau Veritas |
Source: Baco Controls catalog 803, technical specifications.
