L21AH20-3EAGM10 Baco 22mm Green Flush Momentary Illuminated Chrome Bezel Pushbutton with 1 NO, 130 V LED, and 3 Position Clip
Sku#: L21AH20-3EAGM10
Contact us for availability.
Details
More Information
Reviews
The Baco L21AH20-3EAGM10 is a 22mm Green Flush Momentary Illuminated Chrome Bezel Pushbutton with 1 NO, 130 V LED, and 3 Position Clip.

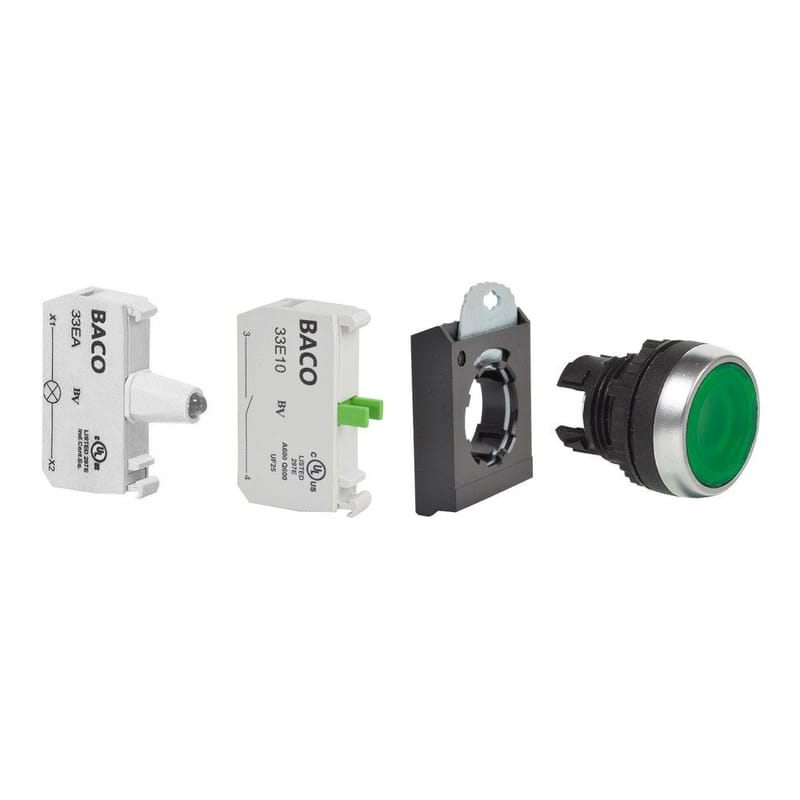

Complete device: supplied ready to install, made up of L21AH20, 333E, 33EAGM, 33E10.
- Modular head, clip and contact block design
- Installs from the front of the panel with one hand
- Contact blocks mount on a 1, 3 or 5 position clip
Specifications:
| Manufacturer: | Baco Controls |
| Part Number: | L21AH20-3EAGM10 |
| Device Type: | Pushbutton |
| Size: | 22 mm |
| Configuration: | Complete Device |
| Illumination: | Illuminated |
| Function: | Momentary |
| Style: | Flush |
| Color: | Green |
| Bezel Color: | Chrome |
| Contacts: | 1 Normally Open (NO) |
| LED Voltage: | 130 V AC |
General Specifications:
| Degree of protection: | IP66, IP69 and IP69K |
| NEMA type: | 1, 2, 3, 3R, 3S, 4, 4X, 12 and 13 |
| Operating temperature: | -25 °C to +70 °C |
| Mechanical endurance: | 5,000,000 cycles (spring return) |
| Impact protection: | IK05 |
| Approvals: | UL 508 / CSA 22.2 (US and Canada), Bureau Veritas |
Source: Baco Controls catalog 803, technical specifications.
