L21AA03 Baco 22mm Black Flush Momentary Chrome Bezel Pushbutton

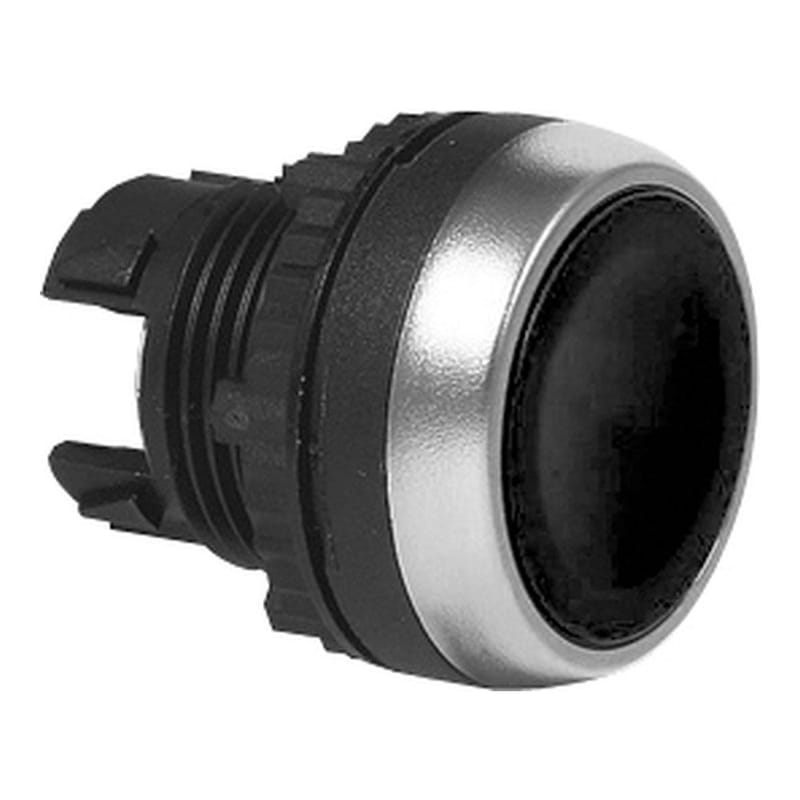

The Baco L21AA03 is a 22mm Black Flush Momentary Chrome Bezel Pushbutton.

Operator head only. To build a complete device, add a mounting clip and contact blocks — see 22mm clips and 22mm contact blocks and LED modules.

• Modular head, clip and contact block design
• Installs from the front of the panel with one hand
• Contact blocks mount on a 1, 3 or 5 position clip

Specifications:

Manufacturer:	Baco Controls
Part Number:	L21AA03
Device Type:	Pushbutton
Size:	22 mm
Configuration:	Component
Illumination:	Non-Illuminated
Function:	Momentary
Style:	Flush
Color:	Black
Bezel Color:	Chrome

General Specifications:

Degree of protection:	IP66, IP69 and IP69K
NEMA type:	1, 2, 3, 3R, 3S, 4, 4X, 12 and 13
Operating temperature:	-25 °C to +70 °C
Mechanical endurance:	5,000,000 cycles (spring return)
Impact protection:	IK05
Approvals:	UL 508 / CSA 22.2 (US and Canada), Bureau Veritas

Source: Baco Controls catalog 803, technical specifications.
