L20SC20L Baco 22mm 24 V Green One-Piece Pilot Light
Sku#: L20SC20L
Contact us for availability.
Details
More Information
Reviews

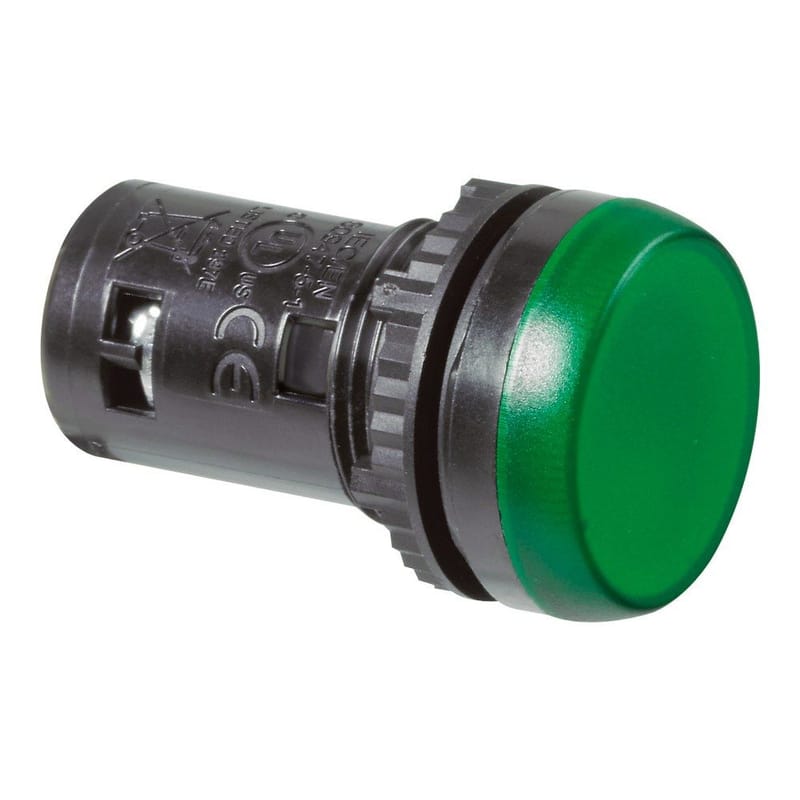

The Baco L20SC20L is a 22mm 24 V Green One-Piece Pilot Light.
- Bright, long-life LED indication
- Mounts in a standard panel hole like any operator
Specifications:
| Manufacturer: | Baco Controls |
| Part Number: | L20SC20L |
| Device Type: | Pilot Light |
| Size: | 22 mm |
| Configuration: | Component |
| Illumination: | Illuminated |
| Style: | Smooth Lens |
| Color: | Green |
| Bezel Color: | Black |
| LED Voltage: | 24 V AC/DC |
General Specifications:
| Degree of protection: | IP66, IP69 and IP69K |
| NEMA type: | 1, 2, 3, 3R, 3S, 4, 4X, 12 and 13 |
| Operating temperature: | -25 °C to +70 °C |
| Rated insulation voltage: | 300 V |
| Lamp rating: | 400 V max, 2.6 W max (IEC 60947-5-1); 240 V max, 2.6 W max (UL 508) |
| LED lifetime: | 50,000 hours at 25 °C |
| Approvals: | UL 508 / CSA 22.2 (US and Canada), Bureau Veritas |
Source: Baco Controls catalog 803, technical specifications.
