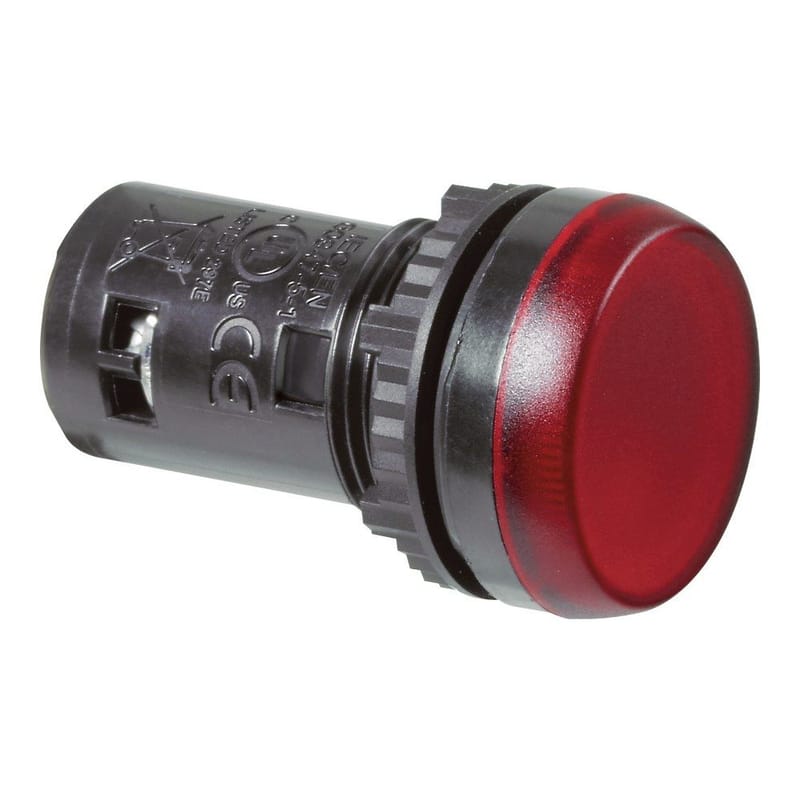

L20SC10H Baco 22mm 230 V Red One-Piece Pilot Light

The Baco L20SC10H is a 22mm 230 V Red One-Piece Pilot Light.

• Bright, long-life LED indication
• Mounts in a standard panel hole like any operator

Specifications:

Manufacturer:	Baco Controls
Part Number:	L20SC10H
Device Type:	Pilot Light
Size:	22 mm
Configuration:	Component
Illumination:	Illuminated
Style:	Smooth Lens
Color:	Red
Bezel Color:	Black
LED Voltage:	230 V AC

General Specifications:

Degree of protection:	IP66, IP69 and IP69K
NEMA type:	1, 2, 3, 3R, 3S, 4, 4X, 12 and 13
Operating temperature:	-25 °C to +70 °C
Rated insulation voltage:	300 V
Lamp rating:	400 V max, 2.6 W max (IEC 60947-5-1); 240 V max, 2.6 W max (UL 508)
LED lifetime:	100,000 hours at 25 °C
Approvals:	UL 508 / CSA 22.2 (US and Canada), Bureau Veritas

Source: Baco Controls catalog 803, technical specifications.
