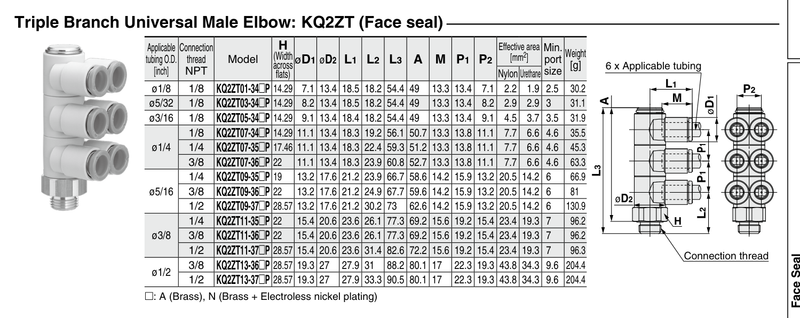

KQ2ZT11-35AP SMC KQ2 One-Touch Fitting - Triple Branch Universal Male Elbow, 3/8 in OD Tube x 1/4 NPT Male

The SMC KQ2ZT11-35AP is a KQ2 series triple branch universal male elbow. It connects 3/8 in OD tubing to a 1/4 NPT male thread. Use to connect six tubes to one female thread at a 90 degree angle. Outlets rotate independently for alignment.

Brass body. Face seal type. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
