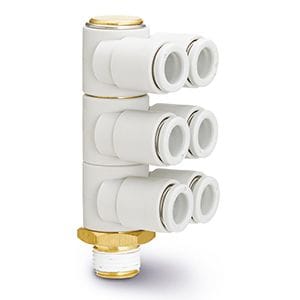

KQ2ZT10-03AP SMC KQ2 One-Touch Fitting - Triple Branch Universal Male Elbow, 10 mm OD Tube x R3/8 Male

The SMC KQ2ZT10-03AP is a KQ2 series triple branch universal male elbow. It connects 10 mm OD tubing to an R3/8 male thread. Use to connect six tubes to one female thread at a 90 degree angle. Outlets rotate independently for alignment.

Brass body. Face seal type. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
