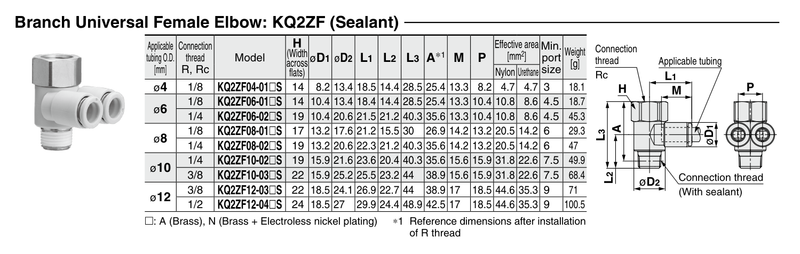

KQ2ZF10-02AS SMC KQ2 One-Touch Fitting - Branch Universal Female Elbow, 10 mm OD Tube x R1/4 Female

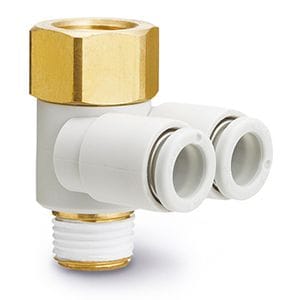

The SMC KQ2ZF10-02AS is a KQ2 series branch universal female elbow. It connects 10 mm OD tubing to an R1/4 female thread. Use to connect two tubes to one male thread at a 90 degree angle.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
