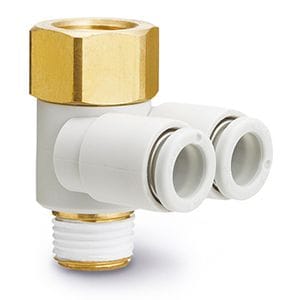

KQ2ZF06-02NS SMC KQ2 One-Touch Fitting - Branch Universal Female Elbow, 6 mm OD Tube x R1/4 Female

The SMC KQ2ZF06-02NS is a KQ2 series branch universal female elbow. It connects 6 mm OD tubing to an R1/4 female thread. Use to connect two tubes to one male thread at a 90 degree angle.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
