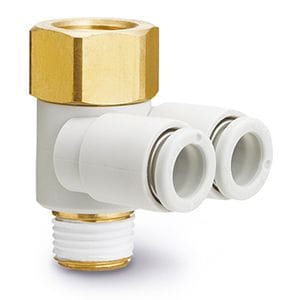

KQ2ZF04-M5A SMC KQ2 One-Touch Fitting - Branch Universal Female Elbow, 4 mm OD Tube x M5 Female

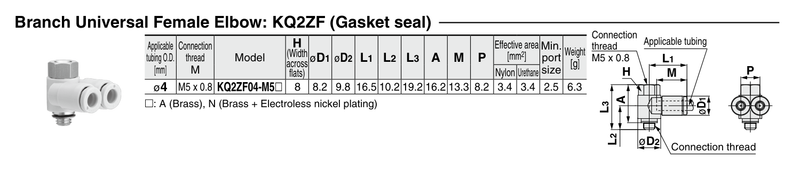

The SMC KQ2ZF04-M5A is a KQ2 series branch universal female elbow. It connects 4 mm OD tubing to an M5 x 0.8 female thread. Use to connect two tubes to one male thread at a 90 degree angle.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
