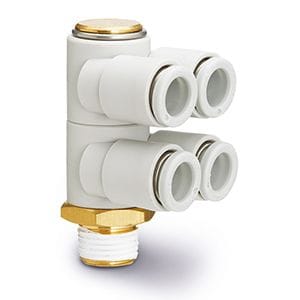

KQ2ZD12-04AS SMC KQ2 One-Touch Fitting - Double Branch Universal Male Elbow, 12 mm OD Tube x R1/2 Male

The SMC KQ2ZD12-04AS is a KQ2 series double branch universal male elbow. It connects 12 mm OD tubing to an R1/2 male thread. Use to connect four tubes to one female thread at a 90 degree angle. Outlets rotate independently for alignment.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
