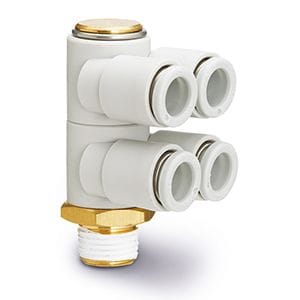

KQ2ZD09-36NS SMC KQ2 One-Touch Fitting - Double Branch Universal Male Elbow, 5/16 in OD Tube x 3/8 NPT Male

The SMC KQ2ZD09-36NS is a KQ2 series double branch universal male elbow. It connects 5/16 in OD tubing to a 3/8 NPT male thread. Use to connect four tubes to one female thread at a 90 degree angle. Outlets rotate independently for alignment.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
