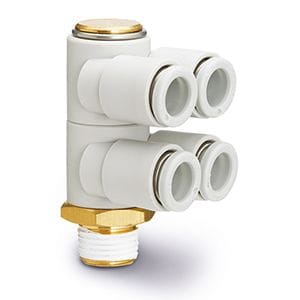

KQ2ZD07-36NP SMC KQ2 One-Touch Fitting - Double Branch Universal Male Elbow, 1/4 in OD Tube x 3/8 NPT Male

The SMC KQ2ZD07-36NP is a KQ2 series double branch universal male elbow. It connects 1/4 in OD tubing to a 3/8 NPT male thread. Use to connect four tubes to one female thread at a 90 degree angle. Outlets rotate independently for alignment.

Nickel-plated brass body. Face seal type. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
