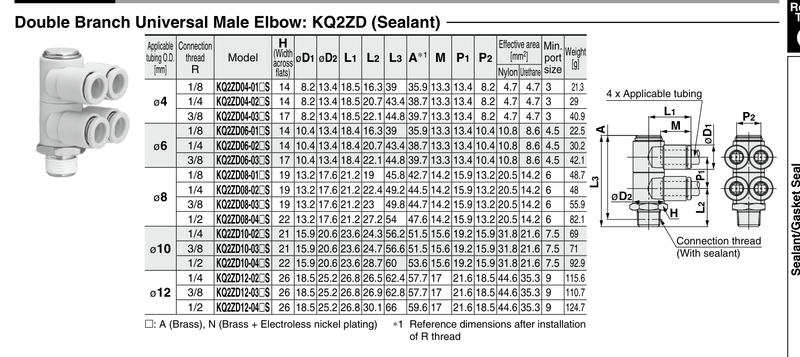

KQ2ZD06-02AS SMC KQ2 One-Touch Fitting - Double Branch Universal Male Elbow, 6 mm OD Tube x R1/4 Male

The SMC KQ2ZD06-02AS is a KQ2 series double branch universal male elbow. It connects 6 mm OD tubing to an R1/4 male thread. Use to connect four tubes to one female thread at a 90 degree angle. Outlets rotate independently for alignment.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
