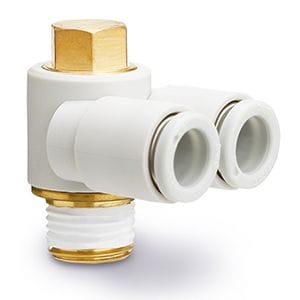

KQ2Z13-37AP SMC KQ2 One-Touch Fitting - Branch Universal Male Elbow, 1/2 in OD Tube x 1/2 NPT Male

The SMC KQ2Z13-37AP is a KQ2 series branch universal male elbow. It connects 1/2 in OD tubing to a 1/2 NPT male thread. Use to connect two tubes to one female thread at a 90 degree angle.

Brass body. Face seal type. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
