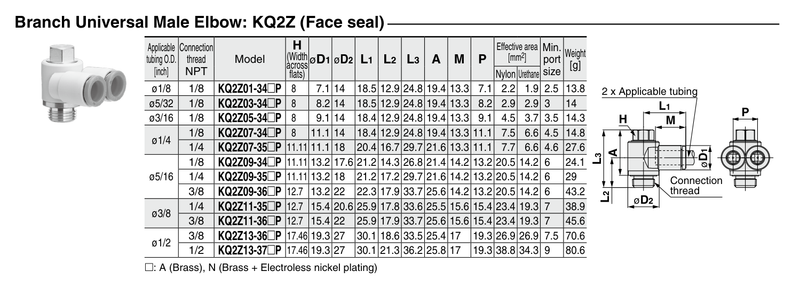

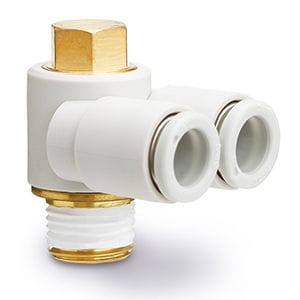

KQ2Z11-36NP SMC KQ2 One-Touch Fitting - Branch Universal Male Elbow, 3/8 in OD Tube x 3/8 NPT Male

The SMC KQ2Z11-36NP is a KQ2 series branch universal male elbow. It connects 3/8 in OD tubing to a 3/8 NPT male thread. Use to connect two tubes to one female thread at a 90 degree angle.

Nickel-plated brass body. Face seal type. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
