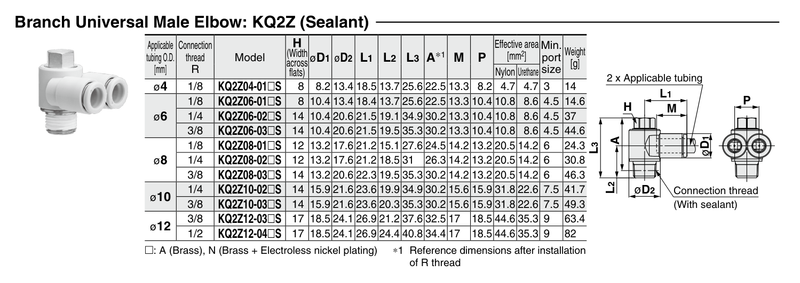

KQ2Z10-02NS SMC KQ2 One-Touch Fitting - Branch Universal Male Elbow, 10 mm OD Tube x R1/4 Male

The SMC KQ2Z10-02NS is a KQ2 series branch universal male elbow. It connects 10 mm OD tubing to an R1/4 male thread. Use to connect two tubes to one female thread at a 90 degree angle.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
