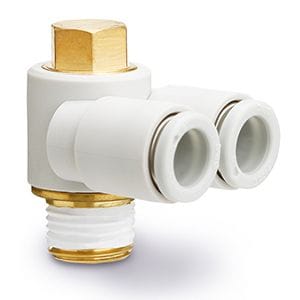

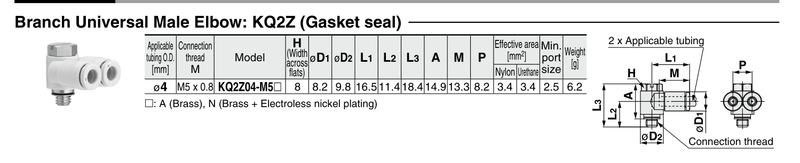

KQ2Z04-M5N SMC KQ2 One-Touch Fitting - Branch Universal Male Elbow, 4 mm OD Tube x M5 Male

The SMC KQ2Z04-M5N is a KQ2 series branch universal male elbow. It connects 4 mm OD tubing to an M5 x 0.8 male thread. Use to connect two tubes to one female thread at a 90 degree angle.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
