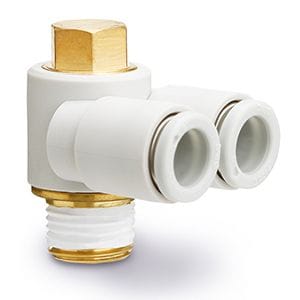

KQ2Z04-01AP SMC KQ2 One-Touch Fitting - Branch Universal Male Elbow, 4 mm OD Tube x R1/8 Male

The SMC KQ2Z04-01AP is a KQ2 series branch universal male elbow. It connects 4 mm OD tubing to an R1/8 male thread. Use to connect two tubes to one female thread at a 90 degree angle.

Brass body. Face seal type. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
