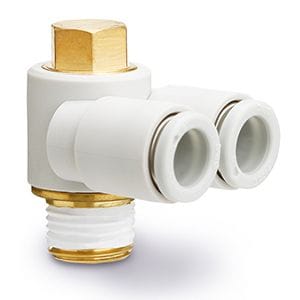

KQ2Z01-32N SMC KQ2 One-Touch Fitting - Branch Universal Male Elbow, 1/8 in OD Tube x 10-32UNF Male

The SMC KQ2Z01-32N is a KQ2 series branch universal male elbow. It connects 1/8 in OD tubing to a 10-32UNF male thread. Use to connect two tubes to one female thread at a 90 degree angle.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
