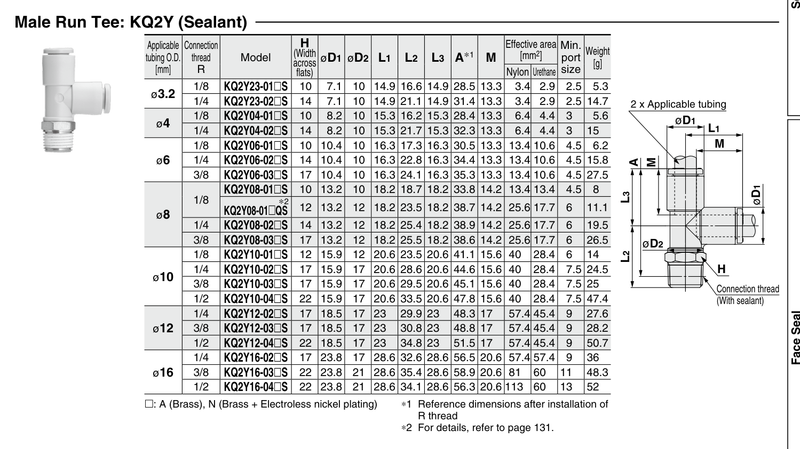

KQ2Y23-01AS SMC KQ2 One-Touch Fitting - Male Run Tee, 3.2 mm OD Tube x R1/8 Male

The SMC KQ2Y23-01AS is a KQ2 series male run tee. It connects 3.2 mm OD tubing to an R1/8 male thread. Use to connect two tubes to one female thread, with one tube in line with the thread and one at 90 degrees.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
