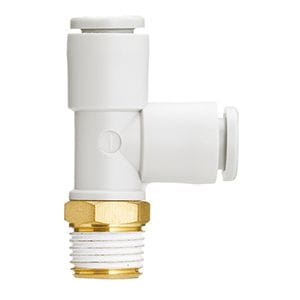

KQ2Y12-03A SMC KQ2 One-Touch Fitting - Male Run Tee, 12 mm OD Tube x R3/8 Male

The SMC KQ2Y12-03A is a KQ2 series male run tee. It connects 12 mm OD tubing to an R3/8 male thread. Use to connect two tubes to one female thread, with one tube in line with the thread and one at 90 degrees.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
