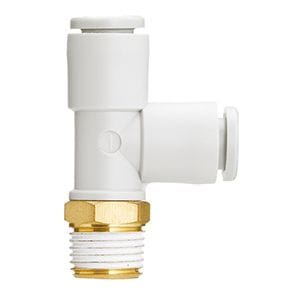

KQ2Y08-G03N SMC KQ2 One-Touch Fitting - Male Run Tee, 8 mm OD Tube x G 3/8 Male

The SMC KQ2Y08-G03N is a KQ2 series male run tee. It connects 8 mm OD tubing to a G 3/8 male thread. Use to connect two tubes to one female thread, with one tube in line with the thread and one at 90 degrees.

Nickel-plated brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
