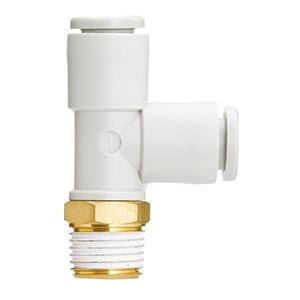

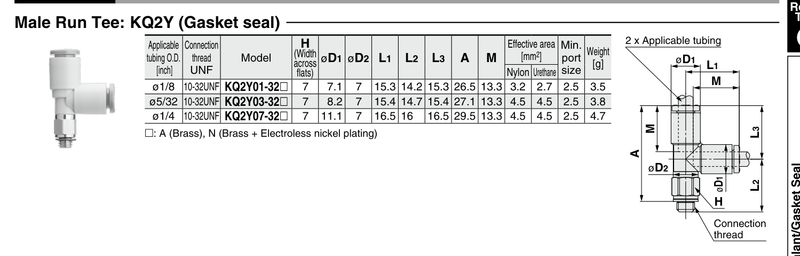

KQ2Y07-32A SMC KQ2 One-Touch Fitting - Male Run Tee, 1/4 in OD Tube x 10-32UNF Male

The SMC KQ2Y07-32A is a KQ2 series male run tee. It connects 1/4 in OD tubing to a 10-32UNF male thread. Use to connect two tubes to one female thread, with one tube in line with the thread and one at 90 degrees.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
