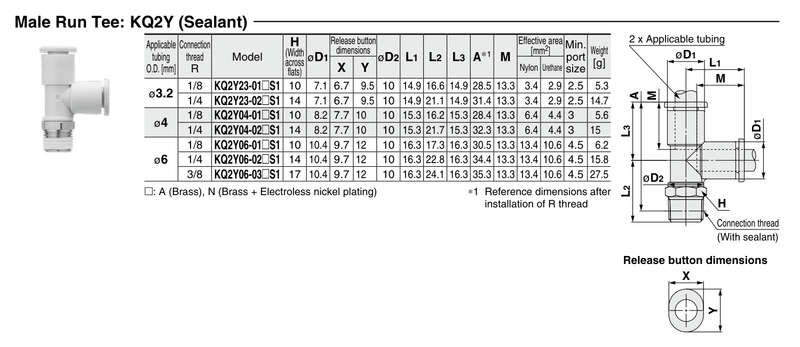

KQ2Y06-02AS1 SMC KQ2 One-Touch Fitting - Male Run Tee, 6 mm OD Tube x R1/4 Male

The SMC KQ2Y06-02AS1 is a KQ2 series male run tee. It connects 6 mm OD tubing to an R1/4 male thread. Use to connect two tubes to one female thread, with one tube in line with the thread and one at 90 degrees.

Brass body. Thread sealant is pre-applied to the male thread. Oval type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
