KQ2Y03-35NS SMC KQ2 One-Touch Fitting - Male Run Tee, 5/32 in OD Tube x 1/4 NPT Male

Sku#: KQ2Y03-35NS

Contact us for availability.
SMC KQ2 male run tee. Connects 5/32 in OD tubing to a 1/4 NPT male thread. Nickel-plated brass, thread sealant pre-applied.

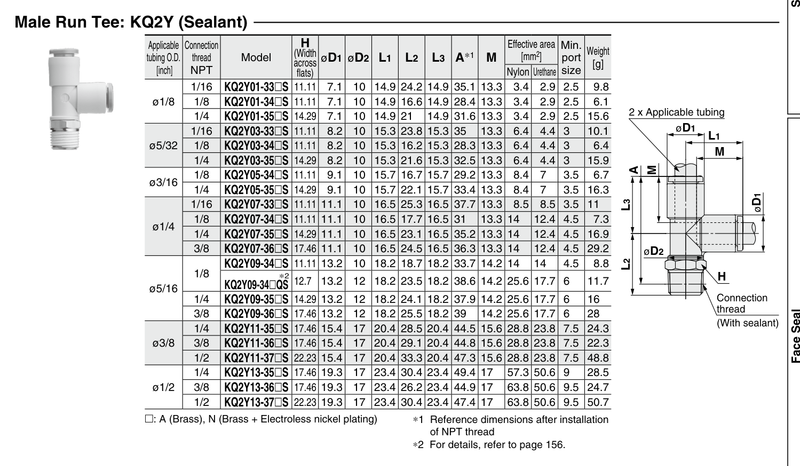

The SMC KQ2Y03-35NS is a KQ2 series male run tee. It connects 5/32 in OD tubing to a 1/4 NPT male thread. Use to connect two tubes to one female thread, with one tube in line with the thread and one at 90 degrees.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
