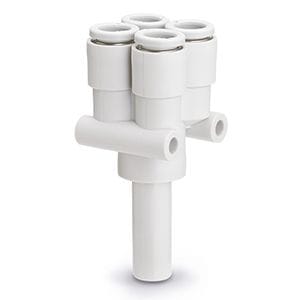

KQ2XD04-06A-X35 SMC KQ2 One-Touch Fitting - Double Plug-in "Y", 4 mm OD Tube

The SMC KQ2XD04-06A-X35 is a KQ2 series double plug-in "Y". It connects 4 mm OD tubing through a plug-in stem that fits directly into another One-touch fitting. Use to branch an existing One-touch fitting into four tubes running in the same direction.

Brass body. Round type release button. Black body with a light gray release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
