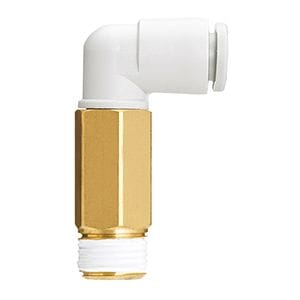

KQ2W16-04NS SMC KQ2 One-Touch Fitting - Extended Male Elbow, 16 mm OD Tube x R1/2 Male

The SMC KQ2W16-04NS is a KQ2 series extended male elbow. It connects 16 mm OD tubing to an R1/2 male thread. Use to connect a tube to a female thread at a 90 degree angle, with extra height to clear neighboring fittings and allow stacked piping.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
