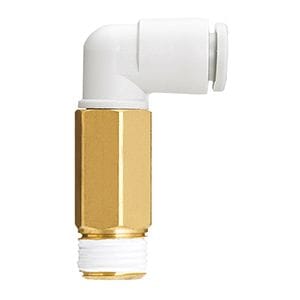

KQ2W12-G03A SMC KQ2 One-Touch Fitting - Extended Male Elbow, 12 mm OD Tube x G 3/8 Male

The SMC KQ2W12-G03A is a KQ2 series extended male elbow. It connects 12 mm OD tubing to a G 3/8 male thread. Use to connect a tube to a female thread at a 90 degree angle, with extra height to clear neighboring fittings and allow stacked piping.

Brass body. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
