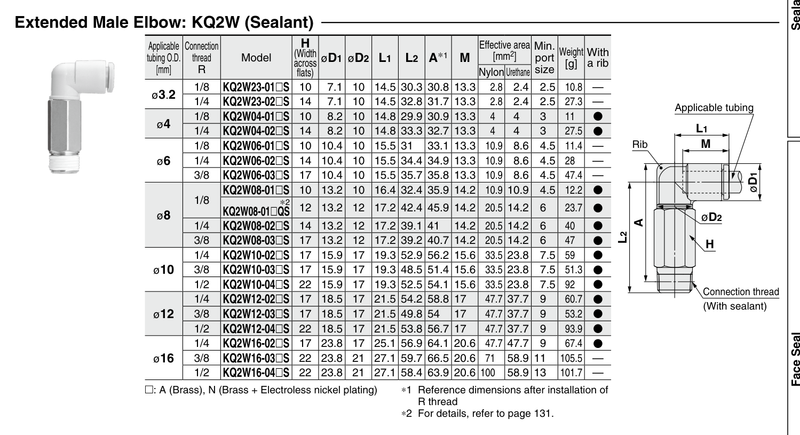

KQ2W12-03AS SMC KQ2 One-Touch Fitting - Extended Male Elbow, 12 mm OD Tube x R3/8 Male

The SMC KQ2W12-03AS is a KQ2 series extended male elbow. It connects 12 mm OD tubing to an R3/8 male thread. Use to connect a tube to a female thread at a 90 degree angle, with extra height to clear neighboring fittings and allow stacked piping.

Brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
