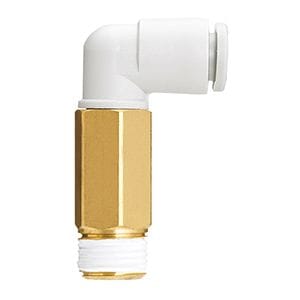

KQ2W10-U03 SMC KQ2 One-Touch Fitting - Extended Male Elbow, 10 mm OD Tube x Uni 3/8 Male

The SMC KQ2W10-U03 is a KQ2 series extended male elbow. It connects 10 mm OD tubing to a Uni 3/8 male thread. Use to connect a tube to a female thread at a 90 degree angle, with extra height to clear neighboring fittings and allow stacked piping.

The Uni thread installs into Rc, G, NPT and NPTF female ports, so one part covers all four. It seals on a captive gasket that seats against the chamfer at the mouth of the port rather than on the thread flanks, so the mating port must present a flat or chamfered face at the thread entry. No thread sealant is required. Replacement gaskets are ordered separately as KQG.

Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
