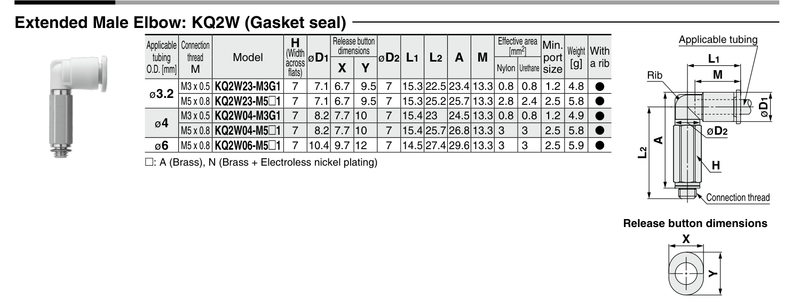

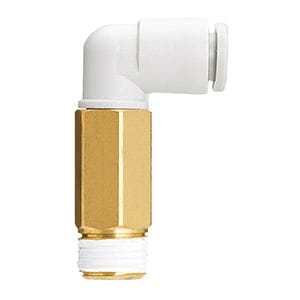

KQ2W04-M5N1 SMC KQ2 One-Touch Fitting - Extended Male Elbow, 4 mm OD Tube x M5 Male

The SMC KQ2W04-M5N1 is a KQ2 series extended male elbow. It connects 4 mm OD tubing to an M5 x 0.8 male thread. Use to connect a tube to a female thread at a 90 degree angle, with extra height to clear neighboring fittings and allow stacked piping.

Nickel-plated brass body. Oval type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
