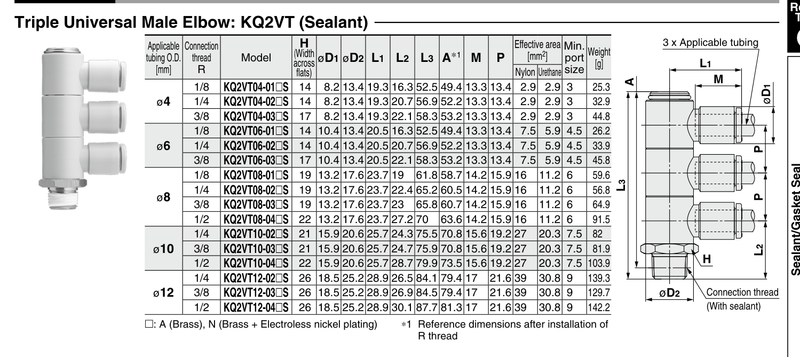

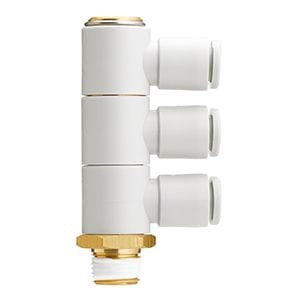

KQ2VT12-02NS SMC KQ2 One-Touch Fitting - Triple Universal Male Elbow, 12 mm OD Tube x R1/4 Male

The SMC KQ2VT12-02NS is a KQ2 series triple universal male elbow. It connects 12 mm OD tubing to an R1/4 male thread. Use to connect three tubes to one female thread at a 90 degree angle. Each outlet rotates independently for alignment.

Nickel-plated brass body. Thread sealant is pre-applied to the male thread. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
