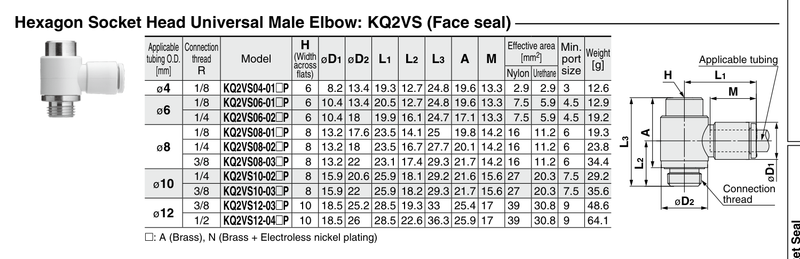

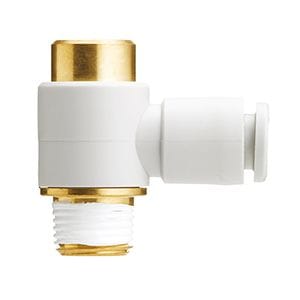

KQ2VS12-03NP SMC KQ2 One-Touch Fitting - Hexagon Socket Head Universal Male Elbow, 12 mm OD Tube x R3/8 Male

The SMC KQ2VS12-03NP is a KQ2 series hexagon socket head universal male elbow. It connects 12 mm OD tubing to an R3/8 male thread. Use to connect a tube to a female thread at a 90 degree angle, tightened with a hex key from above in a confined space.

Nickel-plated brass body. Face seal type. Round type release button. Operating pressure: 29.5 inHg vacuum to 1 MPa (145 psi).
